Model Stovl

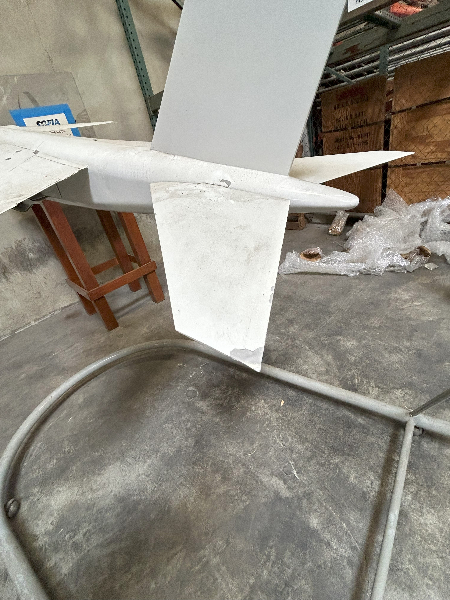

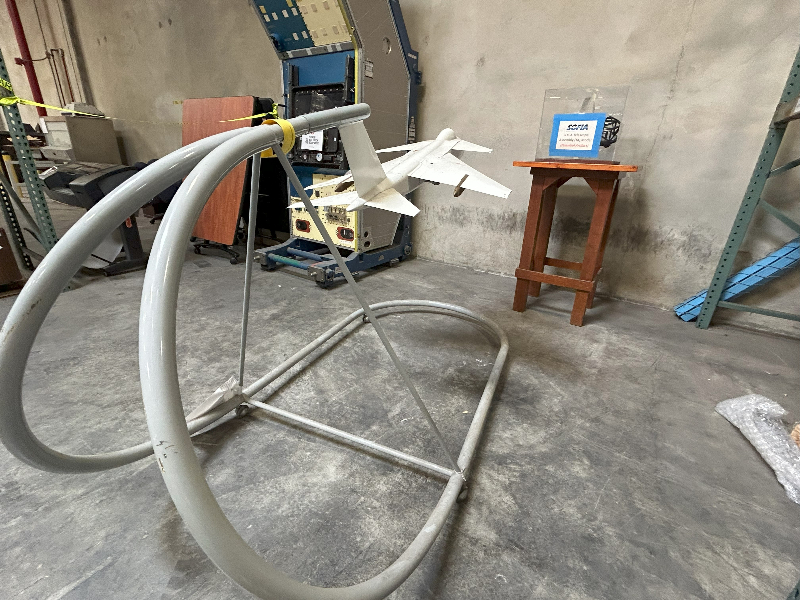

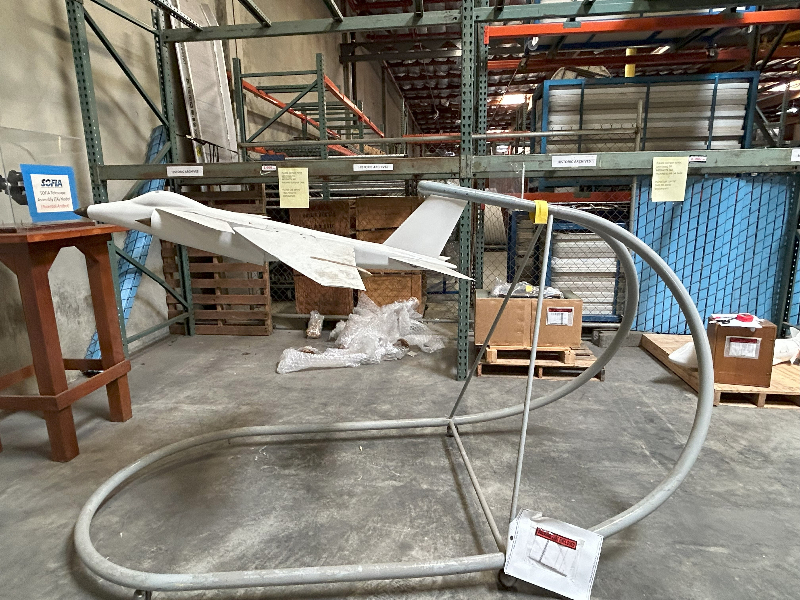

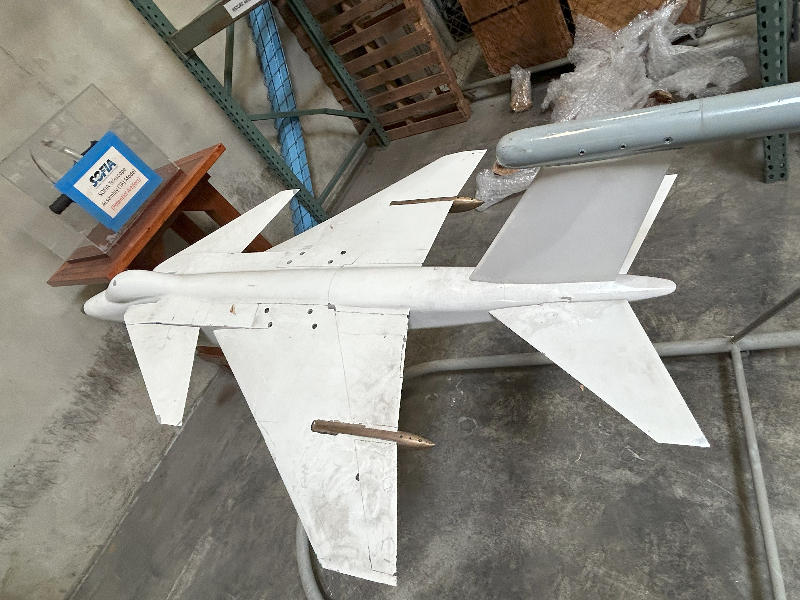

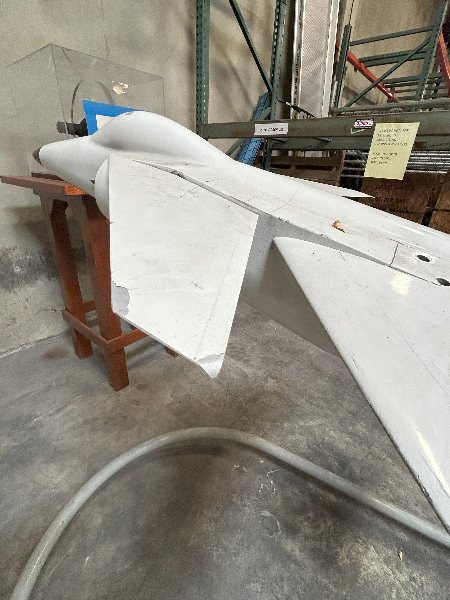

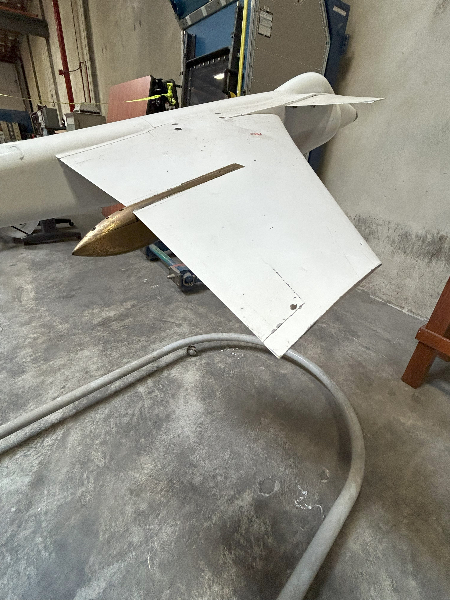

Click here for NASA Item Additional Information McDONNELL DOUGLAS 2793 STOVL FIGHTERAT, Mfr. Ames Research Center, Mdl. 000, dim.: 102" x 41" x 56", est. weight: 200 lbs. This is an advance vector thrust supersonic short take off and vertical landing STOVL concept that was designed in the early 1980s. It was derived from the successful Harrier aircraft. This wind tunnel model was built by Dynamic Engineering Inc under subcontract to McDonnell Douglas It was tested in the Ames 9 by 7 Foot Supersonic Wind Tunnel at speeds ranging from Mach16 1250 mph to Mach 24 1900 mph. Test results showed how the jet plumes interact with the airframe aerodynamics and what effect they had on the overall drag, Three different model configurations were tested three surface this model canard wing horizontal tail off and wing horizontal tail canard off This model was part of a NASA research program in which many supersonic powered lift concepts were investigated The lessons learned from this research influenced the designs of later VSTOL vertical short takeoff and landing fighter aircraft such as the Joint Strike Fighter F35The part of the research program involving this model was conducted by Ames aerospace engineers Don Durston 1Lt James Sculerati John Schreiner and Doug Pea of the Aerodynamics Division Model mechanical work during tests was performed by Bruce Gilbaugh and display preparation was done by Manuel Escamilla and Ruben Flores of the Technical Services Division Aircraft Design Specifications Single engine Capable of inflight thrust vectoring for enhanced maneuvering Designed for deck launched intercept mission 400 foot takeoff distance at 42000lb gross weight Maximum speed Mach 18. Repairs may be needed and parts may be missing. Bidders are CAUTIONED to inspect before bidding. (809101 8337 0035)    IMPORTANT NOTICE TO ALL BIDDERS #1: PROPERTY IN THIS LOT MAY ONLY BE SOLD TO U.S. ENTITY. U.S. CITIZENSHIP OF BUYER/RECEIVER MUST BE PROVEN PRIOR TO ANY REMOVAL. ALSO, ENTRY ONTO BASE FOR INSPECTION AND REMOVAL MUST BE BACKED UP WITH PROOF OF U.S. CITIZENSHIP BEFORE ENTRY IS ALLOWED. TYPES OF APPROVED DOCUMENTS: 1) U.S. GOVERNMENT-ISSUED IDENTIFICATION (U.S. PASSPORT, U.S. MILITARY ID); OR 2) STATE-ISSUED IDENTIFICATION (REAL ID) TO INCLUDE ADDITIONAL TSA-APPROVED DOCUMENTS; OR 3) PERMANENT RESIDENT CARD PULS REAL ID AND ADDITIONAL TSA-APPROVED DOCUMENTS   All persons accessing NASA/Moffett Field shall obtain a visitors' badge. An email link will be sent to bidder/inspector and must be filled out immediately; it can take up to 48 hrs. to obtain a badge. ALSO, a completed Statement of Citizenship Declaration must be completed by purchaser/purchaser's designated agent prior to removal. A) FOR PURCHASERS: COMPLETE THE DECLARATION OF CITIZENSHIP==FORM "A" (See "Documents" section) B) FOR 3RD-PARTIES (DESIGNATED AGENTS): COMPLETE THE DECLARATION OF CITIZENSHIP==FORM "B" (See            "Documents" section)   IMPORTANT NOTICE TO ALL BIDDERS #2: PLEASE REVIEW SPECIAL ITAR (International Traffic in Arms Regulation within the "Documents" section.   NOTE #1: Inspect prior to bidding. SOLD "AS IS." PHYSICAL INSPECTION IS STRONGLY RECOMMENDED! Bidders agree to physically inspect the property upon which they bid or thereby waive the opportunity to conduct a physical inspection. In waiving their inspection rights, bidders bear the risk for any gross omissions regarding the functionality of items, failures to cite major missing parts and/or restrictions with regards to usage that would have been revealed by physical inspection.    NOTE #2: This is all the information provided by NASA Ames Research. Please perform physical inspection to ascertain a more complete picture of the condition of the interested item.   NOTE #3: There is a 10-day removal timeframe. Please refer to Terms & Conditions "Removal" clause and removal is by appointment ONLY! Third party removals MUST have purchaser's authorization ON FILE with NASA Ames prior to arrival. Please provide SIGNED purchaser's receipt & authorization letter containing name and company's name, if applicable, to arc-dl-disposal@nasa.gov.   NOTE #4: All bidders must have all necessary tools and equipment with them at the time of property removal. The following provisions supersede the Online Sale Terms and Conditions which you accepted when you first registered. By submission of your bid on this auction, you hereby agree to the terms and conditions of this auction including these amended provisions: This auction is subject to the following provisions: These items are subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Parts 120 through 130); Bidders must be a U.S. Citizens to participate in this auction; and Bidders must not be listed on the Department of Commerce's Denied Persons List, Department of State's Debarred Parties List, as well as the Excluded Parties List System. If the successful bidder designates a third party removal agent to remo
