Description from GovDeals

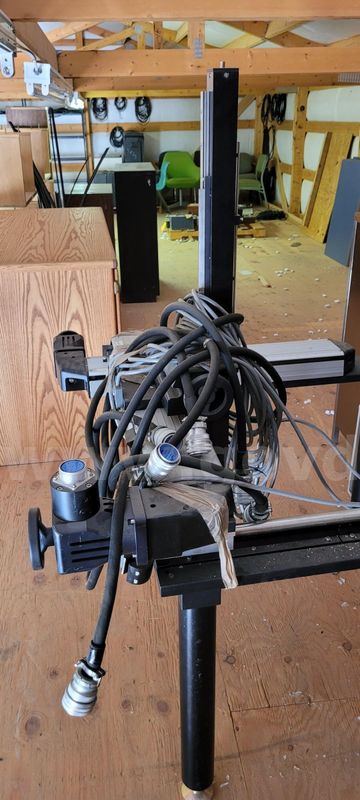

Matec 3D linear positioning system configured as a custom Cartesian (XYZ) motion stage or gantry assembly.
Key Characteristics & Component Identification

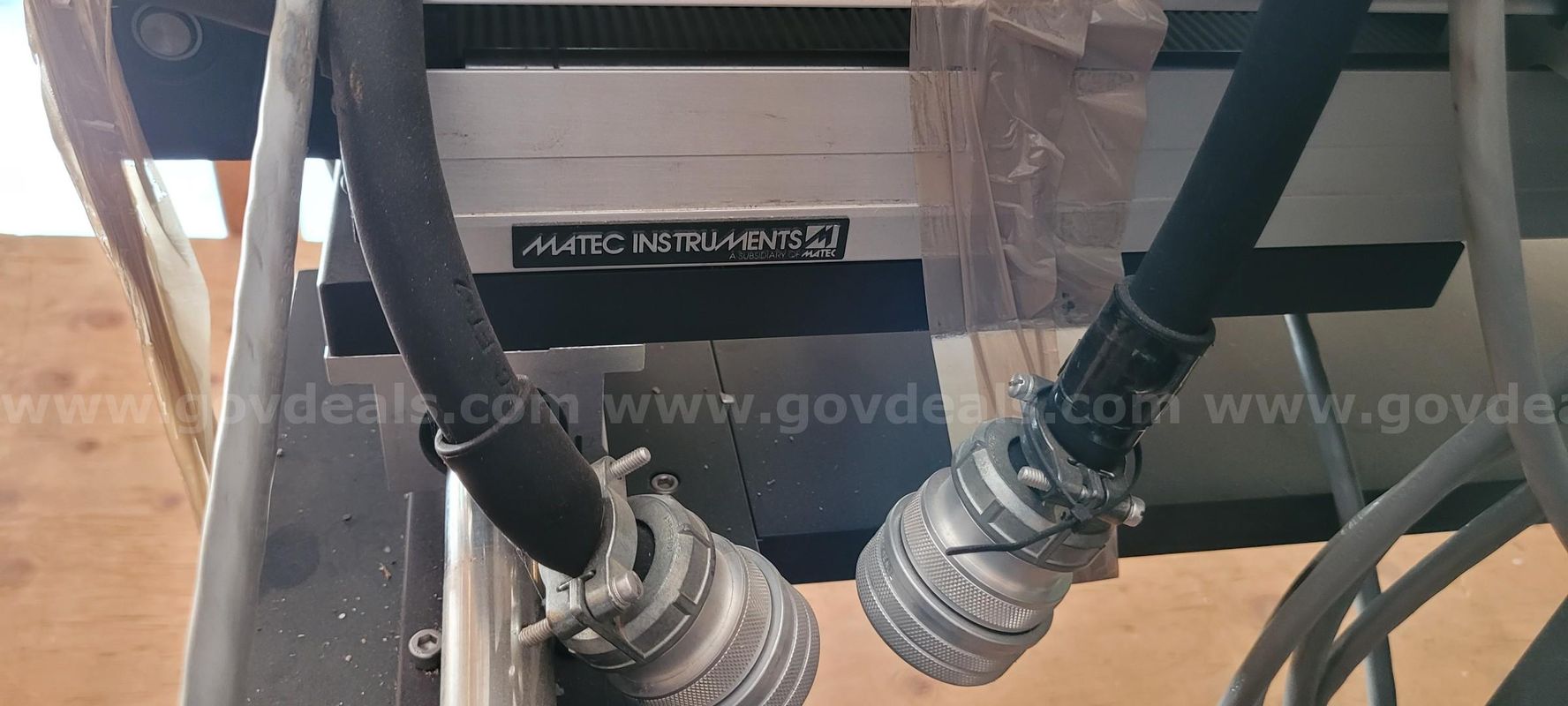

• Linear Modules: The prominent silver components are heavy-duty, aluminum-extrusion linear guide axes. They utilize enclosed drive mechanisms (typically high-precision ball screws or synchronous tooth belts) to handle precise positioning.
• Gantry Framework: The axes are mounted onto a rigid, black structural base frame with heavy vertical legs and leveling feet, designed to isolate vibrations and maintain a perfectly level working plane.
• Drive & Connection Interface: On the right-hand side, a specialized drive head module is visible. This setup usually interfaces with industrial servo or stepper motors to automate automated multi-axis pick-and-place, CNC milling, or specialized scanning routines.

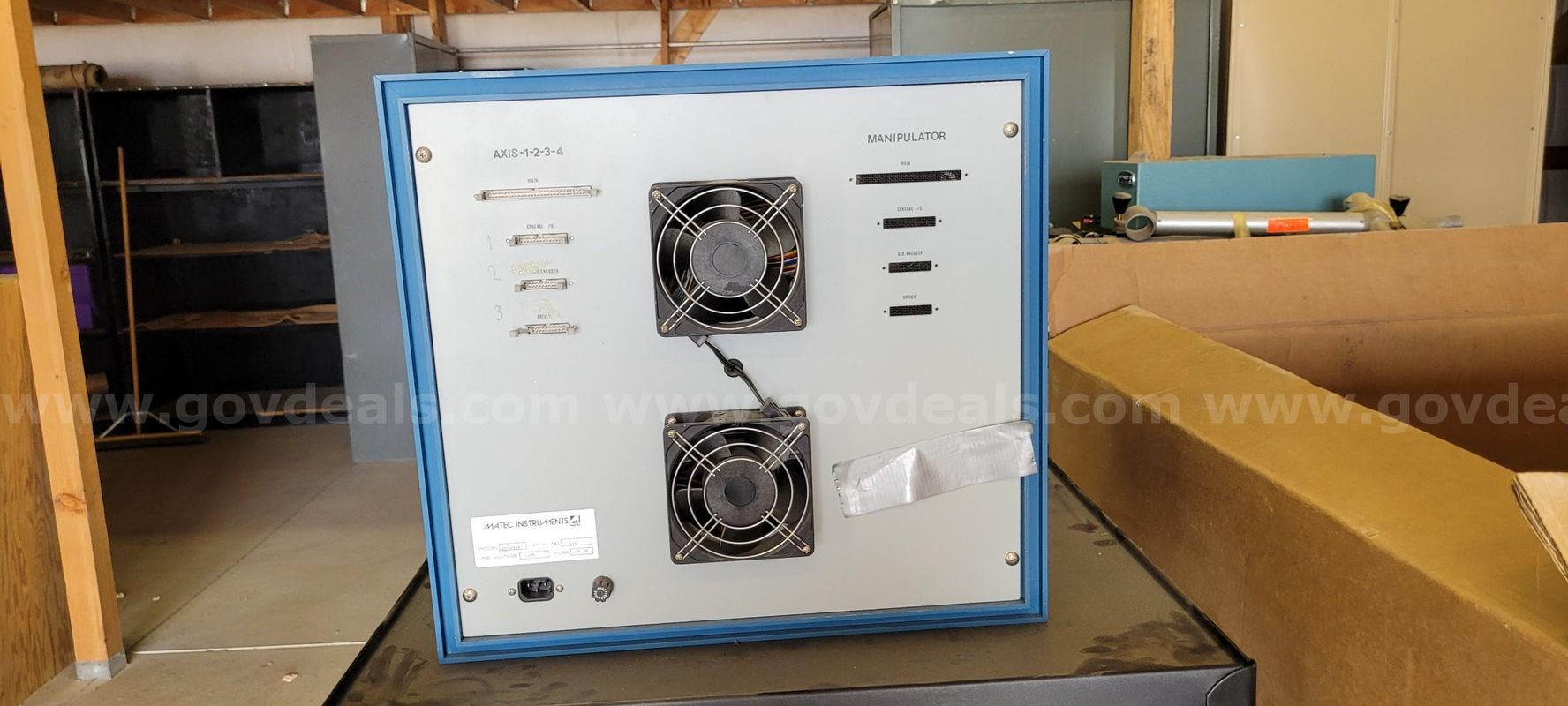

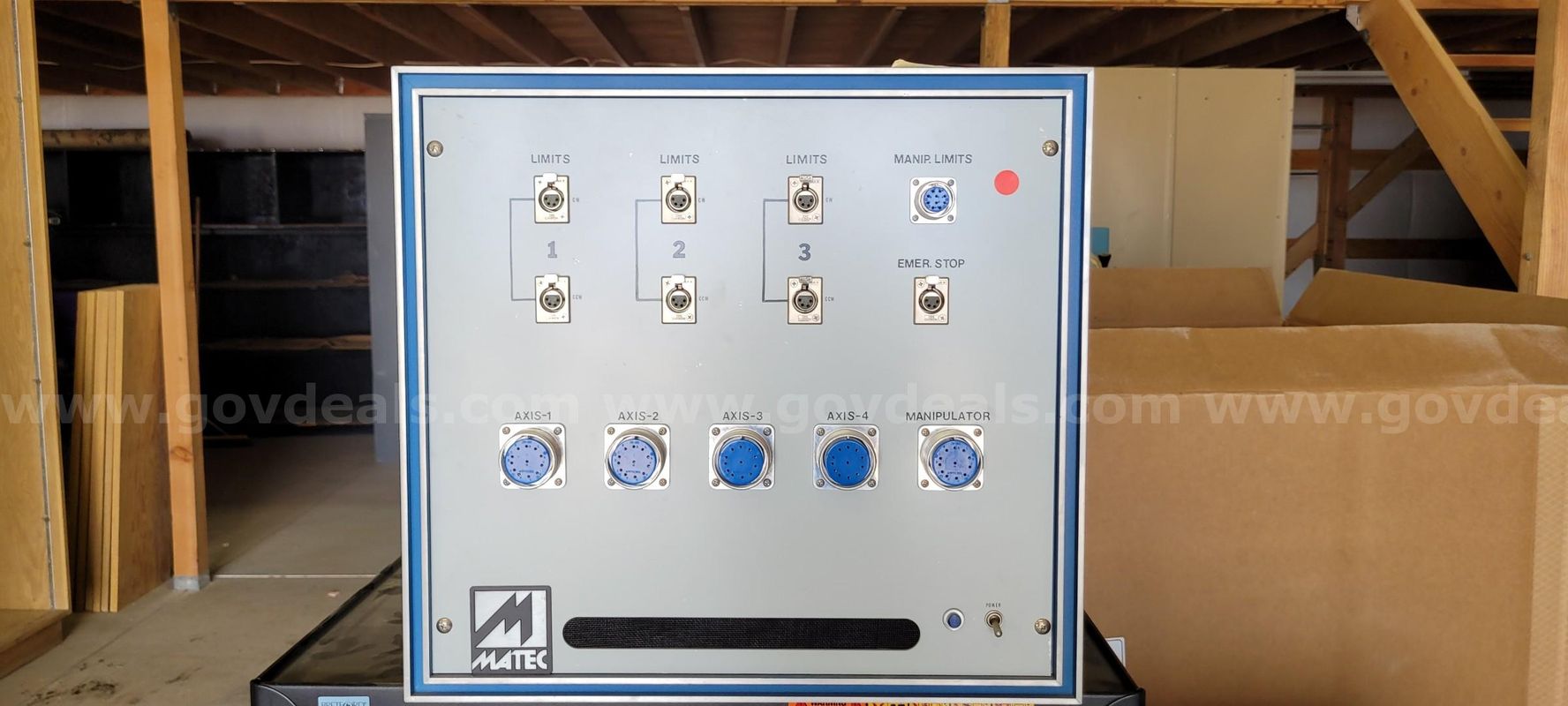

• Cabling & Management: The bundle of heavy gray industrial cabling stored on top is designed to supply power and feedback lines (like encoder signals and limit switches) back to a centralized CNC motion controller.
Common Industrial Applications
These precise multi-axis setups are widely used for:
• Material handling or automated parts pick-and-place
• Heavy-duty industrial dispensing, welding, or inspection routines
• Specialized wood/aluminum CNC router carving or custom fabrication layers
